NCIS 2 Armament Wharf Extension

Project Overview

Ertech and joint venture partner Duratec was awarded the contract to construct a 107° extension to the Armament Wharf at HMAS Stirling on Garden Island, WA. The wharf will consist of a concrete wharf deck, one berthing dolphin, two mooring dolphins, cathodic protection, construction of wharf services and provision and installation of wharf furniture.

5.4% of total man hours worked on site were by Indigenous Personnel. Ertech also engaged a seventeen-year-old indigenous project administrator trainee who completed a Certificate IV in Business Administration. This trainee’s commitment to quality meant she was nominated for the CCF Aboriginal Trainee of the Year Award.

Fast Facts

  • ClientDepartment of Defence
  • LocationGarden Island, WA
  • Year of completion2021

Scope of works

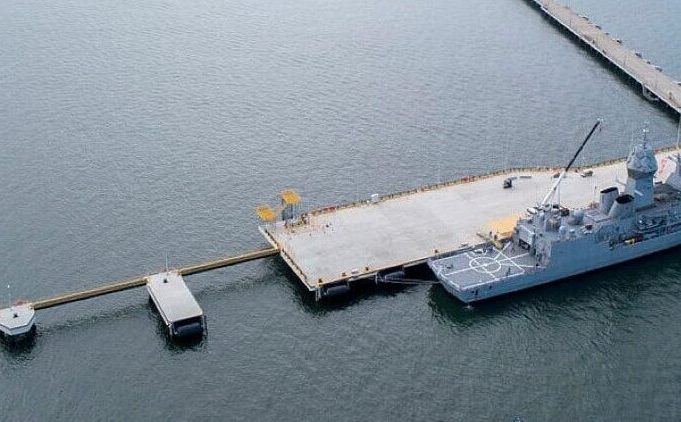

Constructing a 107°extension to the existing Armament Wharf consisting of:

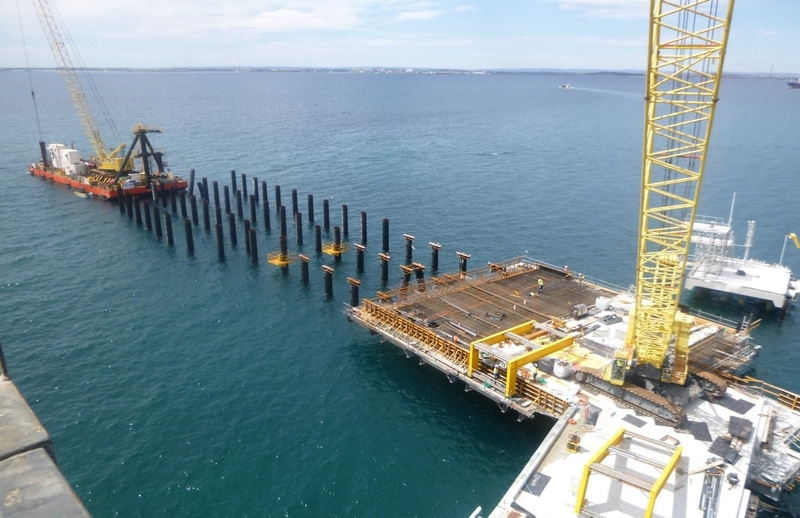

  • A 156m x 25m wide in-situ flat concrete wharf deck on a tubular steel pile wharf with local widening to 33m to facilitate vehicle u-turns
  • One berthing dolphin
  • Two mooring dolphins at the northern end with access vial steel walkways
  • Demolition of existing dolphins and walkways
  • Dredging of navigational waters in the vicinity of the Armament Wharf extension

Constructing wharf services on the Armament Wharf extension including:

  • Supply and installation of firefighting, potable water and electrical (lighting) mains along the extent of the wharf
  • Supply and installation of wharf lighting to facilitate night-time loading
  • Supply and installation of security systems
  • Supply and installation of upgrades to the existing information and communication technology (ICT) networks to enable connectivity between ship cameras and the base security camera network

Provision and installation of wharf furniture including:

  • Fender systems to support the berthing of the MOSC and RAN fleet
  • Firefighting hose reel cabinets and extinguishers
  • Heavy duty guard rails
  • Hawser rails
  • 200 tonne horn bollards
  • Traffic bollards
